Ganter Standard Elements Elasticated to Print Press On, Silver, GN 614 3 NI

ManoMano

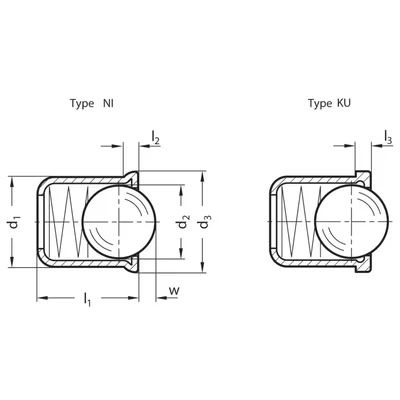

Ganter: GN614-3-NI Spring Plunger ; All Stainless Steel Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. -Housing and ball constructed from NI stainless steel -AISI 305 / 420C -Housing sheet-metal -Ball hardened MPN: 614-3-NI EAN: 4045525559585 GN614-3-NI Spring Plunger ; All Stainless Steel Attributes: D2: 2.4mm L2: 0.75mm MFR Part No.: GN614-3-NI Type: NI Stainless Steel d3: 3.5mm l1: 4mm

Amazon

Diameter: 3 mm, length: 4 mm, suspension travel w: 0.7 mm, packaging unit: 10 pressure pieces spring pressure in N: 1, 8 (beginning) - 3, 5 (end) sleeve and ball: stainless steel, rustproof 1.4303/1.3 541 Sleeve Drawn from sheet metal, hardened ball compression springs: stainless steel, rust-proof 1.4568, Manufacturer: Ganter Normelemente

Zoro Tools

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. -Housing and ball constructed from NI stainless steel -AISI 305 / 420C -Housing sheet-metal -Ball hardened
