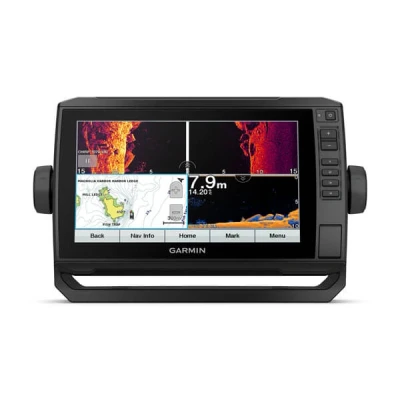

Garmin Echomap™ UHD 92sv with GT56UHD TM Trans Fish finder

Garmin Echomap™ UHD 92sv - Screen resolution: 400 × 800 pixels - Screen size: 9" (19.9 × 11.3cm) - Screen type: WVGA - Power: 500 (RMS) / 4000W (peak-to-peak) - Water Resistance: IPX7 - Mounting options: Bracket or recessed - Weight: 1kg - Power Consumption: 18W - Receiver: 5Hz - Installed worldwide base map - Suitable for data cards: 1x microSD™ card (up to 32gb) - Waypoints: 5000 - Track log: 50,000 points / 50 saved tracks - Routes: 100 - Equipped with timed tables - Compatible with Garmin Echo sounders - Support for AIS, DSC, GCV Black Box, Fusion-Link - Compatible Radios and ActiveCaptain - Compatible with NMEA 2000 - Transducer pin numbers: 12 - NMEA 0183 ports: input and output port - Equipped with wireless connectivity - Compatible with Dual-Frequency and Dual-Beam Echo Lead - Supported Frequencies: Traditional Chirp with high bandwidth (150-240 kHz) ClearVü/UHD SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz) - Maximum depth: 700m/2300ft in freshwater and 335m/1100ft in saltwater (depending on conditions) - Bottom logging, water temperature log and map, sonar recording and rewind - No Garmin Marine Network ports The sunlight-readable 9" touchscreen chartplotter features a bracket mount with quick release. This chartplotter supports several Garmin transducers, including the Panoptix Livescope™ scanning sonar system. Vibrant, high-contrast scanning sonar colour palettes make it easier than ever to distinguish targets and structures. Manage your water (sport) experience from almost anywhere with the ActiveCaptain® app. Connect your boat to share data, sonar and maps with other compatible devices. Create personalized on-screen fishing maps with a 0.3-meter circumference. Save the data for your own use or share it with the Garmin QuickDraw™ community on the Garmin Connect™ app. The GT56UHD-TM transducer offers traditional Garmin CHIRP sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and a 20% greater range for our UHD SideVü sonar, top performance is achieved at all depths.
