Gesipa 1432059 Rivet Grey

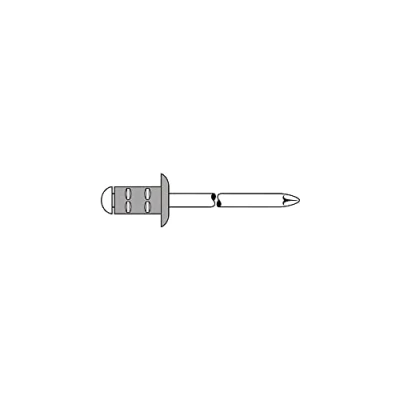

Originally developed as a multi-area blind rivet, the GESIPA PolyGrip has developed a lot of other talents in its career, which now make it a favourite when it comes to fulfilling difficult and demanding applications in the industrial environment Whether in aluminium, steel or stainless steel, indoors or outdoors, with hard or soft joints, critical hole diameter and tolerances: if no one else can do it, the GESIPA PolyGrip is almost always the saving solution A PolyGrip blind rivet has such a large clamping range that it can replace up to five different dimensions of DIN standard blind rivets Another advantage is the excellent hole closure. This means that the rivet shaft deformes radially during the setting process, thus compensating for borehole inaccuracies, center offset and diameter differences to form a play-free and tight connection Technical details: rivet shaft diameter 4 mm, shear force 1060 N, tensile force 1680 N, flat round head, drill hole diameter 4.1 mm, material rivet mandrel stainless steel A2, material hollow rivet aluminium alloy, set head diameter max. 8 mm, clamping range 7.0-13 mm, rivet shaft length 17 mm, Weight: 0.00507283664862 pounds, Manufacturer: Gesipa
