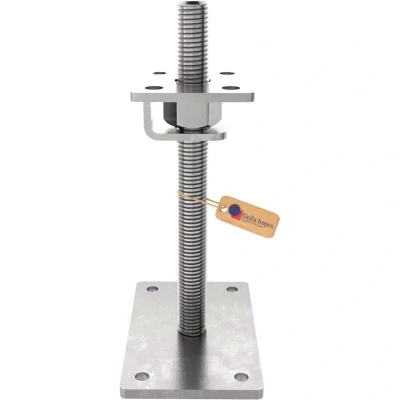

GeZu Impex® Adjustable Post Support Welded Nut 100 x mm Zinc Flake Height Adjust Holder Elevated Base

Amazon

PRODUCT - Adjustable Bolt Down Post Support is very practical and is used in many garden and timber construction projects. The hexagon nut is welded to the support plate, and the welded joint is used to fix the plate in place. FEATURES - The adjustable post Support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors. USABILITY - If the foundation does not have the same height everywhere, the post support can be adjusted in a range of 50 - 130 mm before final installation. The 150 mm long threaded rod enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when the height is adjusted. VERSATILITY - For stability reasons, approx. 10 - 20 mm of the adjustment range is required as thread security. Thanks to the hot-dip galvanisation, the Adjustable Elevated Post Base Support is optimally protected against external weather influences. The base plate measures 100 × 100 mm and the support plate measures 80 × 80 mm. TECHNICAL DATA - Adjustment range: 50 - 230 mm - Support plate: 100 x 100 mm - Material thickness of support plate: 8 mm - Holes in support plate: 4 holes Ø 13 mm - Hole spacing of support plate: 70 mm - Base plate: 160 x 100 mm - Material thickness of base plate: 10 mm - Thread thickness: M24 - Holes in base plate: 4 holes Ø 13 mm - Hole spacing of base plate: 70 mm & 130 mm - Ø mandrel/thread: 30 mm - Hexagon nut: SW 46 - Material type: Steel zinc flake coated

ManoMano

Adjustable Bolt Down Post Support for Garden and Timber Construction Projects The Adjustable Bolt Down Post Support is highly practical and widely used in garden and timber construction projects. The hexagon nut is welded to the support plate, and the welded joint ensures the plate is securely fixed in place. Why This Post Support Stands Out The adjustable post support can be securely fastened to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored with bolt anchors Provides a stable base for various timber constructions, ensuring easy installation and lasting support Key Features and Usability If the foundation varies in height, the post support can be adjusted within a range of 50 - 130 mm before final installation The 150 mm long threaded rod enables both height adjustment and functions as a mandrel, which screws into or out of the post for precise alignment Versatility and Durability For stability, approximately 10 - 20 mm of the adjustment
