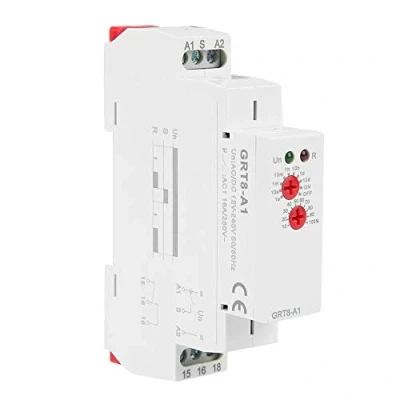

GRT8 A1 Delay Timer Switch, AC/DC 12V 240V Mini Power On Time Relay DIN Rail 35mm Cycle Switch for Industrial Control

Rated supply voltage: AC / DC 12-240V (50-60Hz); Power Terminal: A1-A2; Setting method: button; Power indicator: green LED; Delay range: 0.1s-10 days, normally open, normally closed Output contact: 1 x SPDT, 16A / AC1, 250VAC / 24VDC; Minimum switching power: 500mW; Indication of the output relay: red indicator; Reset time: 200 ms max .; Mounting method: 35mm DIN rail This is a single-function power-on delay relay and the delay can be set using the panel button. Very wide delay range, 0.1 s to 10 days (10 types of settings). Working voltage AC / DC 12V-240V. The operating state of the relay is indicated by LEDs. With a very small volume, this relay can be mounted on a 35 mm DIN rail.
