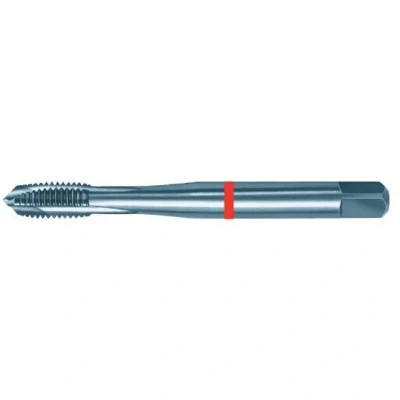

Guhring 5558 M8X1.25MM HSS E Red Ring Spiral Point Machine Tap TiN Coated DIN 371

ManoMano

Guhring: 5558 M8X1.25MM HSS-E Red Ring Spiral Point Machine Tap - TiN Coated - DIN 371 Guhring standard production taps are marked with colour rings to help you quickly and confidently choose the correct tool for your job. Each ring relates to the unique machining behaviours of different materials as dictated by their type and condition. Manufactured from HSS-E steel to DIN 371. Spiral point for through holes Red ring To form B Size range M3 to M10 Steam tempered Tolerance to ISO 2/6H MPN: 05558008.000 EAN: 4031093580076 5558 M8X1.25MM HSS-E Red Ring Spiral Point Machine Tap - TiN Coated - DIN 371 Attributes: Class of Fit: ISO2/6H Coolant Delivery: External Dimensions Standard: DIN 371 Finish/Coating: Steam Tempered Helix Angle: 0 MFR Part No.: 05558 008.000 Material: Cobalt High Speed Steel Material Grade: M35 Overall Length: 90mm Pitch: 1.25 Ring Colour: Red Series: 5558 Shank Diameter: 8.0mm Square Width: 6.2mm Tap Type: Spiral Point Tapping Depth: 35.0mm Thread Direction: Right

Zoro Tools

Guhring standard production taps are marked with colour rings to help you quickly and confidently choose the correct tool for your job. Each ring relates to the unique machining behaviours of different materials as dictated by their type and condition. Manufactured from HSS-E steel to DIN 371. Spiral point for through holes Red ring To form B Size range M3 to M10 Steam tempered Tolerance to ISO 2/6H
