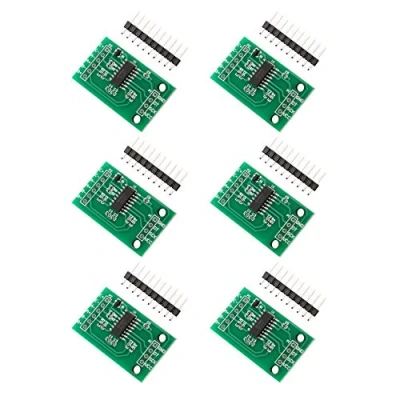

HALJIA 6Pcs HX711 Weight Pressure Sensor Module 24 bit Precision AD Dual channel Load Cell Compatible with Arduino DIY

This module uses a 24-bIt high-precision A/D converter chip hx711. It is designed for high-precision electronic scales. It has two analog channel inputs and an integrated 128-times gain programmable amplifier. The input circuit can be configured to provide bridge-bridged (eg, pressure, weighing) sensor modes, making it an ideal high-precision, low-cost sampling front-end module. Power consumption (including regulated power supply circuit): Typical operating current: 1.7mA, power-off current: 1μA. Operating voltage range: 2.6 5.5V; Operating temperature range: -20 +85 °C; 16-pin SOP-16 seal.
