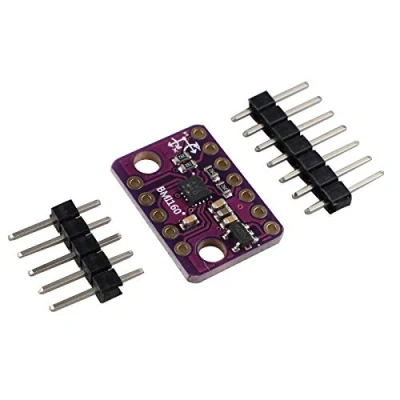

HALJIA BMI160 Module 6DOF 6 axis Rate Angular Velocity Gyroscope + Gravity Acceleration Sensor Inertial Motion Purple

The BMI160 6-a@@@qIdLBlIHgPHQGt4V99e1xFYTuvuSAMGn@@@is inertial motion sensor is packaged in a MEMS sensor and integrates a 16-bIt 3-axis accelerometer and an ultra-low power 3-axis gyroscope. The module can output acceleration data (acceleration value detected by the device in the X, Y, and Z axis directions) and gyroscope data (speed of the device rotating around the X, Y, and Z axes). When the accelerometer and gyroscope are running in full-speed mode, the typical power consumption is as low as 950μA, which is only 50% or less of the power consumption of similar products on the market. BMI160 is specially designed for smart phones, tablets, and wearable devices. It has a built-in smart pedometer algorithm and can directly read the number of steps through a register. The built-in 3-axis acceleration and 3-axis gyroscope can realize running, fitness and other sports detection. The module has a built-in LDO power management chip, VIN supports 3.2~6V wide voltage power supply, and also has a separate 3.3V interface, which is compatible with Arduino 3.3V and 5V controller direct drive. It can be applied on: 1. Walking pedometer, 2. Acceleration detection, 3. Inclination measurement, 4. Display switch between horizontal and 5.vertical screen mode.
