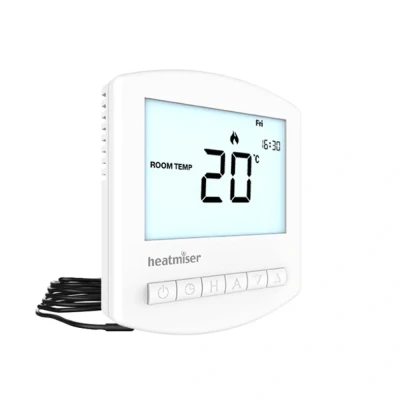

Heatmiser Slimline E Programmable Thermostat V3

Zoro Tools

The Heatmiser Slimline-E offers precise control and management for electric underfloor heating systems with its array of features: Features: Self Learning Preheat: @@@yzl/b3ODov8DKyBt4b5LK5++b9BtXm0N@@@ start calculates heat-up time for optimal comfort. Temperature Hold Facility: Set desired temperature for specific duration. Key Locking: Prevent tampering with heating system settings. Flexible Programming: Choose from non-programmable, 5/2 day, or 7-day programming. Blue Backlight: Clear visibility with automatic off feature. Holiday Feature: Set specific temperature while away for energy efficiency. C/F Selectable: Easily switch between temperature units. Frost Protection: Adjustable temperature setting to prevent freezing. 16A Switch Rating: Handles power requirements of electric underfloor heating. Floor Sensor Included: Ensures accurate temperature measurement. Floor, Air or Floor and Air Sensors: Monitor and control temperature according to preference. Specifications: Max Current: 16A Supply: 230v Dimensions (L, H, D) : 98x85x13mm Temperature Range: 05-35C No. Heating Levels: 4 Weight: 195g Probe Option: Floor or Remote Air Probe Probe Rating: 10Kohm IP Rating: IP20 Installation: Carefully separate the front half from the back plate. Place the thermostat front somewhere safe. Terminate as shown in wiring diagram. Screw the thermostat back plate securely into the back box. Clip the front of the thermostat back onto the back plate. Important: Do not install near direct heat source. Do not push hard on LCD screen. Flush mount; requires 35mm back box depth. Upgrade your underfloor heating control with the Heatmiser Slimline-E for efficient and comfortable temperature management.

The Underfloor Heating Store

The Heatmiser Slimline-E Programmable Thermostat V3 is a programmable thermostat specifically designed for electric underfloor heating systems. It is compatible with all electric floor systems with a total load of less than 16A, ensuring efficient control of your underfloor heating. This thermostat features a self-learning preheat function, which calculates the required heat-up time for optimal comfort. You can also enjoy the convenience of setting a desired temperature for a specific duration with the temperature hold facility. Once the set time has expired, the thermostat will return to its normal program. The thermostat comes with key locking functionality, reducing the risk of tampering with the heating system and maintaining desired settings. It offers flexible programming options, including non-programmable, 5/2 day, or 7-day programming, to suit your specific needs and preferences. The Slimline-E thermostat also features a blue backlight for easy viewing.
