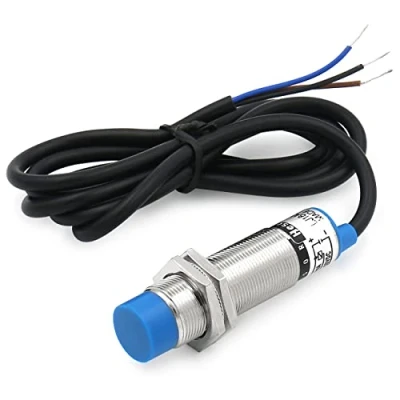

Heschen M18 Inductive Proximity Sensor Switch Non shield Type LJ18A3 8 Z/AY Detector 8mm 10 30VDC 200mA PNP Normally Closed(NC) 3 Wire

[8MM NON-SHIELDED SENSING] M18 threaded cylindrical housing with an extended 8mm (±10%) detecting distance for magnetic metals. As a non-flush model, clearance is required around the sensing head [PNP NORMALLY CLOSED] Safely operates on a 10-30VDC working voltage. Standard 3-wire PNP (Sourcing) logic: the black wire stops sourcing current from the positive supply when triggered [HIGH-SPEED & EASY WIRING] Standard color coding is Brown (+), Blue (-), and Black (Output). It supports a maximum response frequency of up to 0.5 kHz under standard conditions, suitable for CNC indexing [BUILT FOR FACTORIES] Features a rugged nickel-plated brass housing with an ABS sensing face. IP65-rated protection ensures reliable defense against industrial dust ingress and low-pressure water jets [UNIVERSAL REPLACEMENT] Designed as a direct drop-in replacement for standard machine limit switches. Note: Adhere to a maximum safe tightening torque of 25Nm for M18 threads to prevent housing damage
