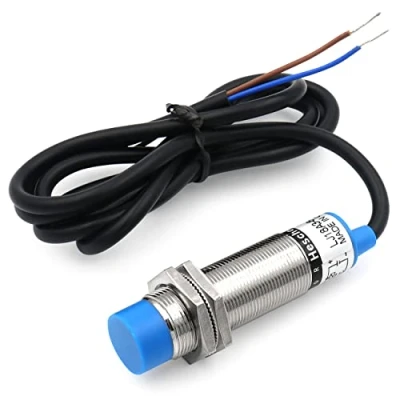

Heschen M18 Inductive Proximity Sensor Switch Non shield Type LJ18A3 8 Z/DX Detector 8mm 10 30VDC 200mA Normally Closed(NC) 2 Wire

[8MM NON-SHIELDED SENSING] M18 threaded cylindrical housing with an extended 8mm (+/- 10%) detecting distance for magnetic metals. As a non-flush model, clearance is required around the sensing head [DC 2-WIRE NORMALLY CLOSED] Efficient 2-wire configuration operating on a 10-30VDC voltage range with a 200mA max output. The circuit remains closed and conducts current until a metal object is detected [SIMPLE TWO-WIRE WIRING] Standard industrial color coding for quick installation: Brown wire connects to the Positive power line (+V) and Blue wire connects to the Negative power line (0V/GND) [BUILT FOR FACTORIES] Features a rugged nickel-plated brass housing with an ABS sensing face. IP65-rated protection ensures reliable defense against industrial dust ingress and low-pressure water jets [CRITICAL WIRING WARNING] Ensure the load is connected in series with the sensor. Connecting the device directly to the power supply without a load will instantly destroy it. Do not exceed a 25Nm torque
