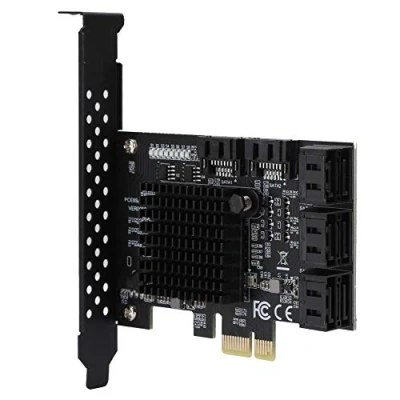

Hopcd PCI E to SATA Expansion Card, Express 8 Port SATA3.0 Controller Card Support 1X 2X 4X 8X 16X, for Windows 7/8/XP/10

【PCI-E to SATA 3.0 Card】Model:PCE8SAT-M01, Master: Fit for Marvell 88SE92xx+JMB5XX, Interface: PCI-E 1X 2X 4X 8X 16X, Support System:Fit For 7/8/XP/10 Fit For Ubuntu, Expansion Interface: 8 x SATA3.0 Interfaces. 【Support Communication Speed & Mode】Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i. Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug. 【BOIS Setting of the Motherboard】SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI-E 1.0 mode, only 200- 250M, 2.0 mode is below 350-400M. If you don't accept it, change the motherboard. 【Wide Compatibility】Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0. PCI-Express V2.0 compliant, backward compatible with PCI-Express v1.0. Compatible with SATA6G, 3G and 1.5G hard drives. User with SATA3.0 data cable for best results. 【Warming Note】PCI-E must have a slot above V2.0, V1.0 will not exceed 250M, PCI-E can be X1 or X16 as long as it is V2.0 version, there is spare X16 slot directly into X16 slot on.
