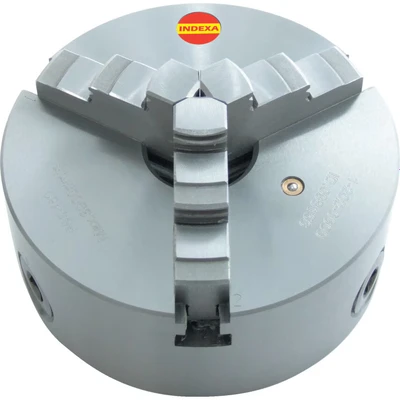

Indexa 003204 200mm 3 Jaw Cast Iron Chuck Rear Mount

ManoMano

Indexa: 003204 200mm 3-Jaw Cast Iron Chuck Rear Mount Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws - internal and external stepped. Cast Iron 3 Jaw Plain Back Chuck DIN 6350 (form A). Three jaw plain back with adaptor recess. Model 003-204 Rear mounting. Model 003-274 Front mounting. MPN: PS3-200/1-202-0800 EAN: 5036140024021 003204 200mm 3-Jaw Cast Iron Chuck Rear Mount Attributes: Chuck DiaMeter: 200mm Jaw: 3 Material: Cast Iron Mount: Rear Product Type: Scroll Lathe Chuck Standards Met: DIN 6350 (form A) Through Hole: 55mm Weight: 16.0kg

Zoro Tools

Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws - internal and external stepped. Cast Iron 3 Jaw Plain Back Chuck DIN 6350 (form A). Three jaw plain back with adaptor recess. Model 003-204 Rear mounting. Model 003-274 Front mounting.
