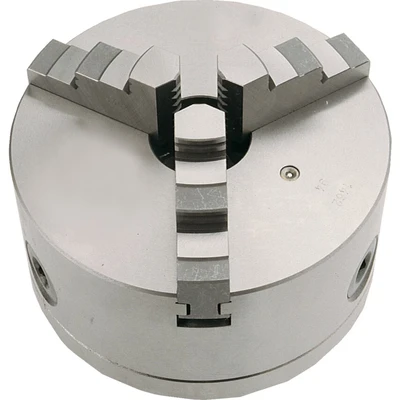

Indexa 003244 160mm 3 Jaw Cast Iron Chuck 4 Taper Mount

ManoMano

Indexa: 003244 160mm 3-Jaw Cast Ion Chuck 4 Tape Mount Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws - internal and external stepped. Cast Iron Taper Mount Type Chucks - Short Taper 1 : 4 DIN 55029, DIN 55022 & ASA B.5.9. Three jaw plain back with adaptor recess. Type 3244 Camlock mounted on a short taper (1 : 4). MPN: PS3-160/D1-4 EAN: 5036140049383 003244 160mm 3-Jaw Cast Ion Chuck 4 Tape Mount Attributes: Chuck Diameter: 160mm Jaw: 3 Material: Cast Iron Product Type: Scroll Lathe Chuck Standards Met: ASA B.5.9 DIN 55029 DIN 5502 Through Hole: 42mm Weight: 12.5kg

Zoro Tools

Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws - internal and external stepped. Cast Iron Taper Mount Type Chucks - Short Taper 1 : 4 DIN 55029, DIN 55022 & ASA B.5.9. Three jaw plain back with adaptor recess. Type 3244 Camlock mounted on a short taper (1 : 4).
