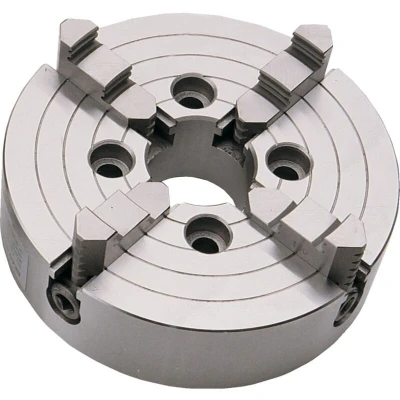

Indexa 004304 250mm 4 Jaw Plain Back Lathe Chuck

ManoMano

Indexa: 004304 250mm 4-Jaw Plain Back Lathe Chuck Cast Iron 4 Jaw Plain Back Chuck: Model 004-304 Plain back with adaptor recess. Front mounted. Independently adjustable jaws. This allows firm gripping of irregular shaped work and the four jaws allow a square component to be perfectly centred to the chuck while achieving maximum gripping force. The chuck bodies are made of steel (sizes 85 - 160mm) or high quality cast iron (sizes 200 - 800mm). The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are made of case hardened steel. Supplied with reversible solid jaws, internal and external stepped. With T-Slots. DIN 6351. MPN: PI4-250/1-302-1000 EAN: 5036140223097 004304 250mm 4-Jaw Plain Back Lathe Chuck Attributes: Chuck DiaMeter: 250mm Jaw: 4 MFR Part No.: 4304 Product Type: Lathe Chuck Standards Met: DIN 6351 Through Hole: 65mm Weight: 25.0kg

Zoro Tools

Cast Iron 4 Jaw Plain Back Chuck: Model 004-304 Plain back with adaptor recess. Front mounted. Independently adjustable jaws. This allows firm gripping of irregular shaped work and the four jaws allow a square component to be perfectly centred to the chuck while achieving maximum gripping force. The chuck bodies are made of steel (sizes 85 - 160mm) or high quality cast iron (sizes 200 - 800mm). The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are made of case hardened steel. Supplied with reversible solid jaws, internal and external stepped. With T-Slots. DIN 6351.
