Indexa A1216M SCLCR 06 Boring Bar Thru Coolant

ManoMano

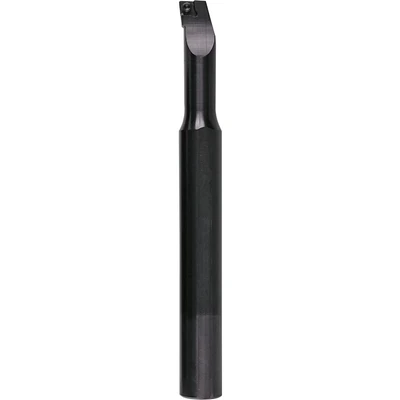

Indexa: A1216M SCLCR 06 Boing Ba Thu Coolant 95 approach. Uses CCMT 06 inserts. SCLCR Screw-on Boring Bars SCLCR 95 approach screw-on boring bar for use with a CCMT 06 insert. For small diameter bores on manual and CNC lathes. 95 approach. Uses CCMT 06 inserts. QBC-06 Quad Bore Holder Set SCLC R (IND-106-9980K) A set featuring 4 SCLCR 95 approach screw-on boring bars in 6, 8, 10 and 12mm diameter, the bars use a CCMT 06 insert. For small diameter bores on manual and CNC lathes. MPN: IND1067536K EAN: 5036140081833 A1216M SCLCR 06 Boing Ba Thu Coolant Attributes: Approach Angle: 95° Centre to Cutting Tip: 9mm Clearance Angle: 7° Coolant Delivery: Internal Cutting Direction: Right Hand ISO Designation: A1216M SCLCR 06 Insert Cutting Edge Length: 6.5mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 80° Rhombic Insert Size: 0602mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: A1216M SCLCR 06 Minimum Bore Diameter (D): 18mm Neck Length (l2): 50mm

Zoro Tools

95 approach. Uses CCMT 06 inserts. SCLCR Screw-on Boring Bars SCLCR 95 approach screw-on boring bar for use with a CCMT 06 insert. For small diameter bores on manual and CNC lathes.
