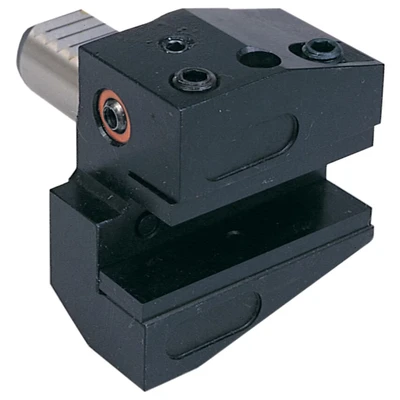

Indexa B2 30X20X40 Radial L.h. Short VDI Tool
Description
ManoMano
Indexa: B2 30X20X40 Radial L.h. Shot VDI Tool Radial - Short Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburized and hardened. Surface hardness of 58-60HRc. Tensile strength above 1000N/mm2. Surfaces blued; Seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control. MPN: B2-30X20X40 EAN: 5036140377622 B2 30X20X40 Radial L.h. Shot VDI Tool Attributes: Dimensions: 30x20x40mm Standards Met: DIN 69880 Type: Left Hand Weight: 1.34kg
Description
(2)
Indexa: B2 30X20X40 Radial L.h. Shot VDI Tool Radial - Short Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburized and hardened. Surface hardness of 58-60HRc. Tensile strength above 1000N/mm2. Surfaces blued; Seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control. MPN: B2-30X20X40 EAN: 5036140377622 B2 30X20X40 Radial L.h. Shot VDI Tool Attributes: Dimensions: 30x20x40mm Standards Met: DIN 69880 Type: Left Hand Weight: 1.34kg
Zoro ToolsRadial - Short Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburized and hardened. Surface hardness of 58-60HRc. Tensile strength above 1000N/mm2. Surfaces blued; seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control.
