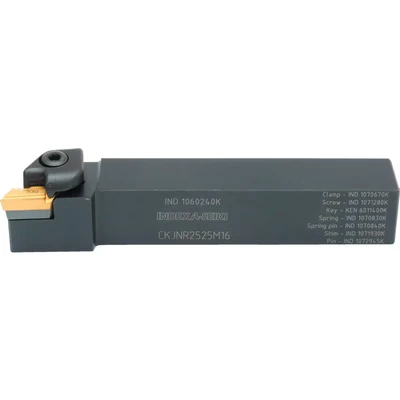

Indexa CKJNR 2525M16 External Toolholder
Description
ManoMano
Indexa: CKJNR 2525M16 Extenal Toolholde 93 approach for 55 negative parallelogram inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CKJNR2525M16 EAN: 5036140080096 CKJNR 2525M16 Extenal Toolholde Attributes: Approach Angle: 93 Clearance Angle: 0 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 25 Head Length (l2): 34 ISO Designation: CKJNR 2525M16 Insert Cutting Edge Length: 16 Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.52 Insert Shape: 55° Parallelogram Insert Size: 1604 Insert Style: KN_X Inserts Included: None MFR Part No.: CKJNR2525M16 Neck Length: 34mm Overall Length (l1): 150 Set Type: Individual Toolholder Shank Height (h): 25 Shank Material: Steel Shank Style: Offset Shank Width (b): 25 Side to Cutting Tip (f): 32 Toolholder Style: CKJN
Description
(2)
Indexa: CKJNR 2525M16 Extenal Toolholde 93 approach for 55 negative parallelogram inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CKJNR2525M16 EAN: 5036140080096 CKJNR 2525M16 Extenal Toolholde Attributes: Approach Angle: 93 Clearance Angle: 0 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 25 Head Length (l2): 34 ISO Designation: CKJNR 2525M16 Insert Cutting Edge Length: 16 Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.52 Insert Shape: 55° Parallelogram Insert Size: 1604 Insert Style: KN_X Inserts Included: None MFR Part No.: CKJNR2525M16 Neck Length: 34mm Overall Length (l1): 150 Set Type: Individual Toolholder Shank Height (h): 25 Shank Material: Steel Shank Style: Offset Shank Width (b): 25 Side to Cutting Tip (f): 32 Toolholder Style: CKJN
Zoro Tools93 approach for 55 negative parallelogram inserts.
Product specifications
