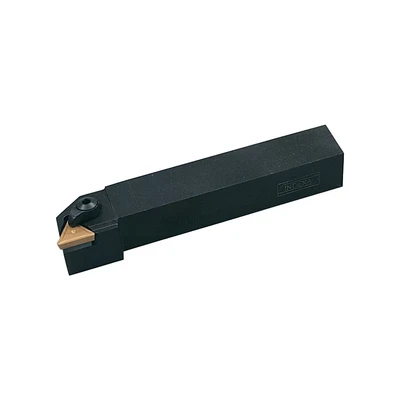

Indexa CTGPR 1616H11 External Toolholder
Description
ManoMano
Indexa: CTGPR 1616H11 Extenal Toolholde 90 approach for 11 positive triangular inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CTGPR1616H11 EAN: 5036140080188 CTGPR 1616H11 Extenal Toolholde Attributes: Approach Angle: 90 Clearance Angle: 11 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16 Head Length (l2): 22 ISO Designation: CTGPR 1616H11 Insert Cutting Edge Length: 11 Insert Holding Type: Top Clamp Insert Inscribed Circle: 6.35 Insert Shape: Triangular Insert Size: 1103 Insert Style: TP_R TP_N Inserts Included: None MFR Part No.: CTGPR1616H11 Neck Length: 22mm Overall Length (l1): 100 Set Type: Individual Toolholder Shank Height (h): 16 Shank Material: Steel Shank Style: Offset Shank Width (b): 16 Side to Cutting Tip (f): 20 Toolholder Style: CTGP
Description
(2)
Indexa: CTGPR 1616H11 Extenal Toolholde 90 approach for 11 positive triangular inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CTGPR1616H11 EAN: 5036140080188 CTGPR 1616H11 Extenal Toolholde Attributes: Approach Angle: 90 Clearance Angle: 11 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16 Head Length (l2): 22 ISO Designation: CTGPR 1616H11 Insert Cutting Edge Length: 11 Insert Holding Type: Top Clamp Insert Inscribed Circle: 6.35 Insert Shape: Triangular Insert Size: 1103 Insert Style: TP_R TP_N Inserts Included: None MFR Part No.: CTGPR1616H11 Neck Length: 22mm Overall Length (l1): 100 Set Type: Individual Toolholder Shank Height (h): 16 Shank Material: Steel Shank Style: Offset Shank Width (b): 16 Side to Cutting Tip (f): 20 Toolholder Style: CTGP
Zoro Tools90 approach for 11 positive triangular inserts.
Product specifications
