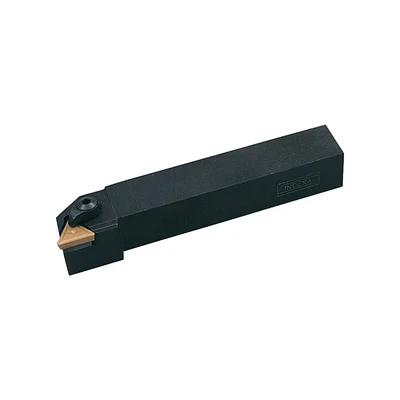

Indexa CTGPR 2020K16 External Toolholder
Description
ManoMano
Indexa: CTGPR 2020K16 External Toolholder 90 approach for 11 positive triangular inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CTGPR2020K16 EAN: 5036140080195 CTGPR 2020K16 External Toolholder Attributes: Approach Angle: 90 Clearance Angle: 11 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20 Head Length (l2): 28 ISO Designation: CTGPR 2020K16 Insert Cutting Edge Length: 16 Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.52 Insert Shape: Triangular Insert Size: 1603 Insert Style: TP_N TP_R Inserts Included: None MFR Part No.: CTGPR2020K16 Neck Length: 28mm Overall Length (l1): 125 Set Type: Individual Toolholder Shank Height (h): 20 Shank Material: Steel Shank Style: Offset Shank Width (b): 20 Side to Cutting Tip (f): 25 Toolholder Style: CTGP
Description
(2)
Indexa: CTGPR 2020K16 External Toolholder 90 approach for 11 positive triangular inserts. For further technical and dimensional specifications please refer to our catalogue. MPN: CTGPR2020K16 EAN: 5036140080195 CTGPR 2020K16 External Toolholder Attributes: Approach Angle: 90 Clearance Angle: 11 Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20 Head Length (l2): 28 ISO Designation: CTGPR 2020K16 Insert Cutting Edge Length: 16 Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.52 Insert Shape: Triangular Insert Size: 1603 Insert Style: TP_N TP_R Inserts Included: None MFR Part No.: CTGPR2020K16 Neck Length: 28mm Overall Length (l1): 125 Set Type: Individual Toolholder Shank Height (h): 20 Shank Material: Steel Shank Style: Offset Shank Width (b): 20 Side to Cutting Tip (f): 25 Toolholder Style: CTGP
Zoro Tools90 approach for 11 positive triangular inserts.
