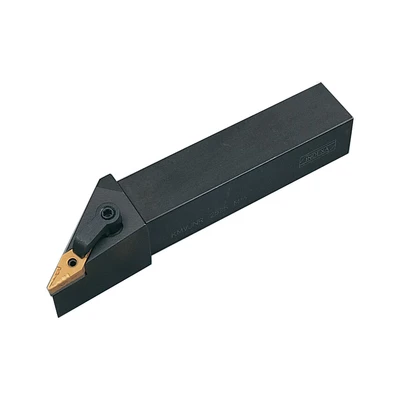

Indexa MVJNR 2020K16 External Toolholder

ManoMano

Indexa: MVJNR 2020K16 Extenal Toolholde 93 approach. Uses VN_A and VN_G inserts. Tool supplied complete with 10 Carbide inserts, in a choice of P Grade for steels and general use, or K Grade for cast iron and non-ferrous applications. Inserts supplied will vary according to availability. MPN: MVJNR2020K16-K EAN: 5036140080256 MVJNR 2020K16 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20mm Head Length (l2): 37mm ISO Designation: MVJNR 2020K16 Insert Cutting Edge Length: 16.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 9.52mm Insert Shape: 35° Rhombic° Insert Size: 1604 Insert Style: VN_A VN_G Inserts Included: None MFR Part No.: MVJNR2020K16-K Overall Length (l1): 125mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: MVJN

Zoro Tools

93 approach. Uses VN_A and VN_G inserts. Tool supplied complete with 10 Carbide inserts, in a choice of P Grade for steels and general use, or K Grade for cast iron and non-ferrous applications. Inserts supplied will vary according to availability.
