Indexa MWLNR 2020K08 External Toolholder
Description
ManoMano

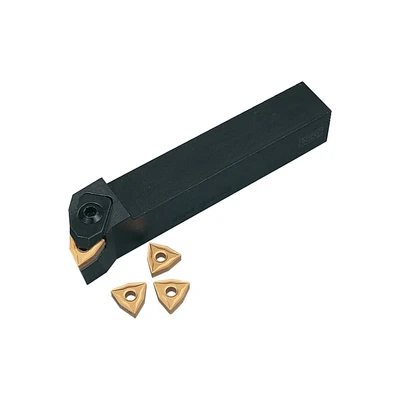

Indexa: MWLNR 2020K08 Extenal Toolholde 95 approach for negative 80 trigon inserts. MPN: MWLNR2020K08 EAN: 5036140080300 MWLNR 2020K08 Extenal Toolholde Attributes: Approach Angle: 95° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20mm Head Length (l2): 34mm ISO Designation: MWLNR 2020K08 Insert Cutting Edge Length: 8.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.70mm Insert Shape: Trigon° Insert Size: 804 Insert Style: WN_A WN_G WN_M Inserts Included: None MFR Part No.: MWLNR2020K08 Overall Length (l1): 125mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Straight Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: MWLN
Description
(2)
Indexa: MWLNR 2020K08 Extenal Toolholde 95 approach for negative 80 trigon inserts. MPN: MWLNR2020K08 EAN: 5036140080300 MWLNR 2020K08 Extenal Toolholde Attributes: Approach Angle: 95° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20mm Head Length (l2): 34mm ISO Designation: MWLNR 2020K08 Insert Cutting Edge Length: 8.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.70mm Insert Shape: Trigon° Insert Size: 804 Insert Style: WN_A WN_G WN_M Inserts Included: None MFR Part No.: MWLNR2020K08 Overall Length (l1): 125mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Straight Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: MWLN
Zoro Tools95 approach for negative 80 trigon inserts.
