Indexa MWLNR 2525M08 External Toolholder
Description
ManoMano

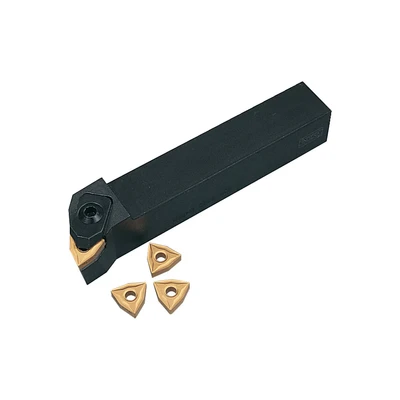

Indexa: MWLNR 2525M08 External Toolholder 95 approach for negative 80 trigon inserts. MPN: MWLNR2525M08 EAN: 5036140080324 MWLNR 2525M08 External Toolholder Attributes: Approach Angle: 95° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 25mm Head Length (l2): 34mm ISO Designation: MWLNR 2525M08 Insert Cutting Edge Length: 8.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.70mm Insert Shape: Trigon° Insert Size: 804 Insert Style: WN_A WN_G WN_M Inserts Included: None MFR Part No.: MWLNR2525M08 Overall Length (l1): 150mm Shank Height (h): 25mm Shank Material: Steel Shank Style: Straight Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: MWLN
Description
(2)
Indexa: MWLNR 2525M08 External Toolholder 95 approach for negative 80 trigon inserts. MPN: MWLNR2525M08 EAN: 5036140080324 MWLNR 2525M08 External Toolholder Attributes: Approach Angle: 95° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 25mm Head Length (l2): 34mm ISO Designation: MWLNR 2525M08 Insert Cutting Edge Length: 8.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.70mm Insert Shape: Trigon° Insert Size: 804 Insert Style: WN_A WN_G WN_M Inserts Included: None MFR Part No.: MWLNR2525M08 Overall Length (l1): 150mm Shank Height (h): 25mm Shank Material: Steel Shank Style: Straight Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: MWLN
Zoro Tools95 approach for negative 80 trigon inserts.
