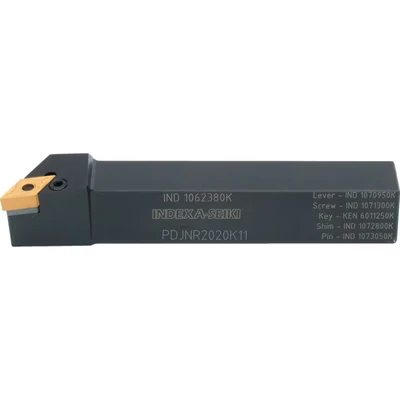

Indexa PDJNR 2020K11 External Toolholder
Description
ManoMano
Indexa: PDJNR 2020K11 Extenal Toolholde 93 approach for negative 55 rhombic inserts. MPN: PDJNR2020K11 EAN: 5036140080478 PDJNR 2020K11 Extenal Toolholde Attributes: Approach Angle: 93° Centre to Cutting Tip: 25mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height: 20.00mm Cutting Height (h1): 20mm Head Length (l2): 30 ISO Designation: PDJNR 2020K11 Insert Holding Type: Lever Lock Insert Shape: 55° Rhombic Insert Size: 1104 Insert Style: DN_G DN_A MFR Part No.: PDJNR2020K11 Neck Length: 30mm Overall Length: 125.00mm Overall Length (l1): 125mm Set Type: Individual Toolholder Shank Height: 20.00mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20 Side to Cutting Tip (f): 25 Toolholder Style: PDJN
Description
(2)
Indexa: PDJNR 2020K11 Extenal Toolholde 93 approach for negative 55 rhombic inserts. MPN: PDJNR2020K11 EAN: 5036140080478 PDJNR 2020K11 Extenal Toolholde Attributes: Approach Angle: 93° Centre to Cutting Tip: 25mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height: 20.00mm Cutting Height (h1): 20mm Head Length (l2): 30 ISO Designation: PDJNR 2020K11 Insert Holding Type: Lever Lock Insert Shape: 55° Rhombic Insert Size: 1104 Insert Style: DN_G DN_A MFR Part No.: PDJNR2020K11 Neck Length: 30mm Overall Length: 125.00mm Overall Length (l1): 125mm Set Type: Individual Toolholder Shank Height: 20.00mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20 Side to Cutting Tip (f): 25 Toolholder Style: PDJN
Zoro Tools93 approach for negative 55 rhombic inserts.
Product specifications
