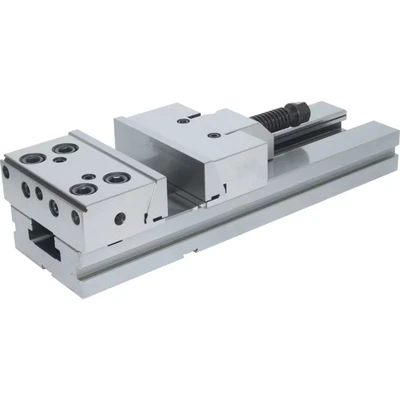

Indexa PVM125 Precision Modular Vice 125 x 150mm

ManoMano

Indexa: PVM125 Precision Modular Vice 125 x 150mm Precision modular vices are designed to be used on standard and CNC machines for precision grinding and milling. The vice could be set up individually or work in multiples, on tables or palletised components depending on the machined Material dimensions. Made from hardened high grade alloy steel. Perpendicular accuracy: 0.005mm. Parallelism: 0.005mm. Accessories: L-wrench, T-wrench, vice holding clamp, work stop with main bolt, positioning key-nuts etc. MPN: IND4450620K EAN: 5036140057340 PVM125 Precision Modular Vice 125 x 150mm Attributes: Base Type: Fixed Clamping Force: 3000kg Compatible Vice Jaw Width: 125mm Jaw Dimensions: 125mm x 40mm Jaw Face Material: Alloy Steel Jaw Height: 40mm Jaw Material: Alloy Steel Jaw Opening: 150mm Jaw Width: 125mm MFR Part No.: PVM125 Mounting Type: Bolt/Clamp Overall Dimensions: 345mm x 125mm Overall Length: 345mm Overall Material: Alloy Steel Overall Width: 125mm Throat Depth: 40mm Vice Type:

Zoro Tools

Precision modular vices are designed to be used on standard and CNC machines for precision grinding and milling. The vice could be set up individually or work in multiples, on tables or palletised components depending on the machined material dimensions. Made from hardened high grade alloy steel. Perpendicular accuracy: 0.005mm. Parallelism: 0.005mm. Accessories: L-wrench, T-wrench, vice holding clamp, work stop with main bolt, positioning key-nuts etc.
