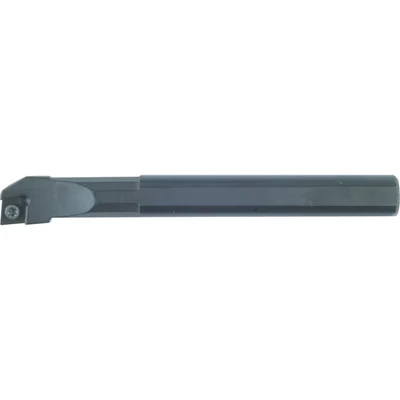

Indexa S10M SCLCR 06 Boring Bar
Description
ManoMano
@@@QM6ZWWrqD8mpVWhVwga8EsL2kKVZwzYP@@@: S10M SCLCR 06 Boring Bar 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067400K EAN: 5036140081680 S10M SCLCR 06 Boring Bar Attributes: Approach Angle: 95° Centre to Cutting Tip: 7mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 4.5mm ISO Designation: S10M SCLCR 06 Insert Cutting Edge Length: 6.5mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 80° Rhombic Insert Size: 0602mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: S10M-SCLCR06 Minimum Bore Diameter (D): 13mm Neck Length (l2): 25mm Number of Bars in Set: N/A None Overall Length (l1): 150mm Set Type: Individual Boring Bar Shank Diameter (d): 10mm Shank Height (h): 9mm Shank Material: Steel Toolholder Style: SCLC
Description
(2)
@@@QM6ZWWrqD8mpVWhVwga8EsL2kKVZwzYP@@@: S10M SCLCR 06 Boring Bar 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067400K EAN: 5036140081680 S10M SCLCR 06 Boring Bar Attributes: Approach Angle: 95° Centre to Cutting Tip: 7mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 4.5mm ISO Designation: S10M SCLCR 06 Insert Cutting Edge Length: 6.5mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 80° Rhombic Insert Size: 0602mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: S10M-SCLCR06 Minimum Bore Diameter (D): 13mm Neck Length (l2): 25mm Number of Bars in Set: N/A None Overall Length (l1): 150mm Set Type: Individual Boring Bar Shank Diameter (d): 10mm Shank Height (h): 9mm Shank Material: Steel Toolholder Style: SCLC
Zoro Tools95 approach for 7 positive 80 rhombic inserts.
Product specifications
