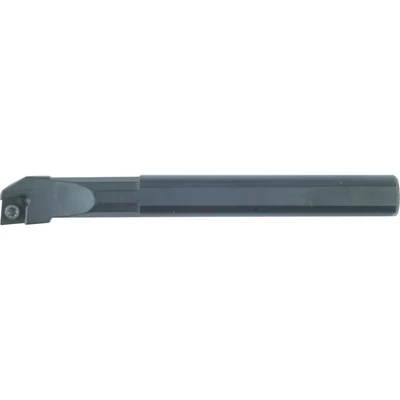

Indexa S12Q SCLCR 09 Boring Bar
Description
ManoMano
Indexa: S12Q SCLCR 09 Boring Bar 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067440K EAN: 5036140081727 S12Q SCLCR 09 Boring Bar Attributes: Approach Angle: 95° Centre to Cutting Tip: 9mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 5.5mm ISO Designation: S12Q SCLCR 09 Insert Cutting Edge Length: 9.7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: 106-7440 Minimum Bore Diameter (D): 17mm Neck Length (l2): 30mm Number of Bars in Set: N/A None Overall Length (l1): 180mm Set Type: Individual Boring Bar Shank Diameter (d): 12mm Shank Height (h): 11mm Shank Material: Steel Toolholder Style: SCLC
Description
(2)
Indexa: S12Q SCLCR 09 Boring Bar 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067440K EAN: 5036140081727 S12Q SCLCR 09 Boring Bar Attributes: Approach Angle: 95° Centre to Cutting Tip: 9mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 5.5mm ISO Designation: S12Q SCLCR 09 Insert Cutting Edge Length: 9.7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: 106-7440 Minimum Bore Diameter (D): 17mm Neck Length (l2): 30mm Number of Bars in Set: N/A None Overall Length (l1): 180mm Set Type: Individual Boring Bar Shank Diameter (d): 12mm Shank Height (h): 11mm Shank Material: Steel Toolholder Style: SCLC
Zoro Tools95 approach for 7 positive 80 rhombic inserts.
