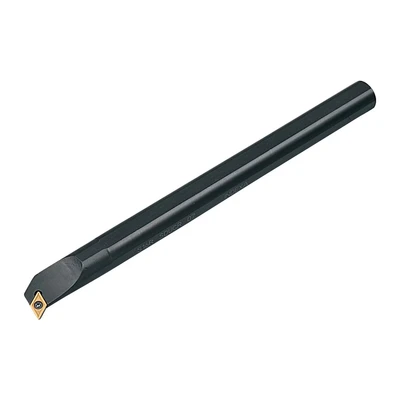

Indexa S12Q SDUCL 07 Boring Bar
Description
ManoMano
@@@9GNXocUD4sETEwUAkKXfUKS4xZTl3jHJ@@@: S12Q SDUCL 07 Boring Bar 93 approach for 7 positive 55 rhombic inserts. MPN: IND1067670K EAN: 5036140283312 S12Q SDUCL 07 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 9mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 5.5mm ISO Designation: S12Q SDUCL 07 Insert Cutting Edge Length: 7.8mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 0702mm Insert Style: DC_Tmm Inserts Included: None MFR Part No.: S12Q-SDUCL07 Minimum Bore Diameter (D): 16mm Neck Length (l2): 25mm Number of Bars in Set: N/A None Overall Length (l1): 180mm Set Type: Individual Boring Bar Shank Diameter (d): 12mm Shank Height (h): 11mm Shank Material: Steel Toolholder Style: DC_T
Description
(2)
@@@9GNXocUD4sETEwUAkKXfUKS4xZTl3jHJ@@@: S12Q SDUCL 07 Boring Bar 93 approach for 7 positive 55 rhombic inserts. MPN: IND1067670K EAN: 5036140283312 S12Q SDUCL 07 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 9mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 5.5mm ISO Designation: S12Q SDUCL 07 Insert Cutting Edge Length: 7.8mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 0702mm Insert Style: DC_Tmm Inserts Included: None MFR Part No.: S12Q-SDUCL07 Minimum Bore Diameter (D): 16mm Neck Length (l2): 25mm Number of Bars in Set: N/A None Overall Length (l1): 180mm Set Type: Individual Boring Bar Shank Diameter (d): 12mm Shank Height (h): 11mm Shank Material: Steel Toolholder Style: DC_T
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
Product specifications
