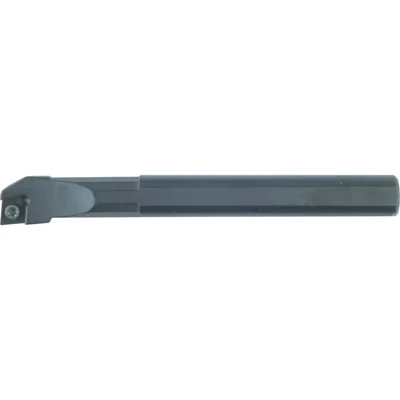

Indexa S20S SCLCL 09 Boring Bar
Description
ManoMano
Indexa: S20S SCLCL 09 Boing Ba 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067510K EAN: 5036140081789 S20S SCLCL 09 Boing Ba Attributes: Approach Angle: 95° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 9mm ISO Designation: S20S SCLCL 09 Insert Cutting Edge Length: 9.7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: S20S-SCLCL09 Minimum Bore Diameter (D): 24mm Neck Length (l2): 35mm Overall Length (l1): 250mm Set Type: Individual Boring Bar Shank Diameter (d): 20mm Shank Height (h): 18mm Shank Material: Steel Toolholder Style: SCLC
Description
(2)
Indexa: S20S SCLCL 09 Boing Ba 95 approach for 7 positive 80 rhombic inserts. MPN: IND1067510K EAN: 5036140081789 S20S SCLCL 09 Boing Ba Attributes: Approach Angle: 95° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 9mm ISO Designation: S20S SCLCL 09 Insert Cutting Edge Length: 9.7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3mm Insert Style: CC_Tmm Inserts Included: None MFR Part No.: S20S-SCLCL09 Minimum Bore Diameter (D): 24mm Neck Length (l2): 35mm Overall Length (l1): 250mm Set Type: Individual Boring Bar Shank Diameter (d): 20mm Shank Height (h): 18mm Shank Material: Steel Toolholder Style: SCLC
Zoro Tools95 approach for 7 positive 80 rhombic inserts.
