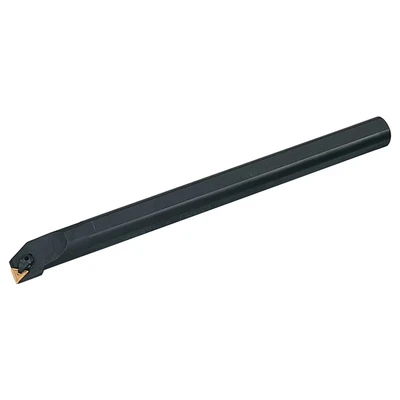

Indexa S25T CTFPR 16 Boring Bar
Description
ManoMano
Indexa: S25T CTFPR 16 Boing Ba 90 approach for 11 positive triangular inserts. MPN: IND1066460K EAN: 5036140081420 S25T CTFPR 16 Boing Ba Attributes: Approach Angle: 90° Centre to Cutting Tip: 17mm Clearance Angle: 11° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 11.5mm ISO Designation: CTFPR 16 Insert Cutting Edge Length: 16mm Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.53mm Insert Shape: Triangle Insert Size: 1603 Insert Style: TP_R TP_N Inserts Included: None MFR Part No.: 106-6460 Minimum Bore Diameter (D): 31mm Neck Length (l2): 40mm Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 23mm Shank Material: Steel Toolholder Style: CTFP
Description
(2)
Indexa: S25T CTFPR 16 Boing Ba 90 approach for 11 positive triangular inserts. MPN: IND1066460K EAN: 5036140081420 S25T CTFPR 16 Boing Ba Attributes: Approach Angle: 90° Centre to Cutting Tip: 17mm Clearance Angle: 11° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 11.5mm ISO Designation: CTFPR 16 Insert Cutting Edge Length: 16mm Insert Holding Type: Top Clamp Insert Inscribed Circle: 9.53mm Insert Shape: Triangle Insert Size: 1603 Insert Style: TP_R TP_N Inserts Included: None MFR Part No.: 106-6460 Minimum Bore Diameter (D): 31mm Neck Length (l2): 40mm Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 23mm Shank Material: Steel Toolholder Style: CTFP
Zoro Tools90 approach for 11 positive triangular inserts.
