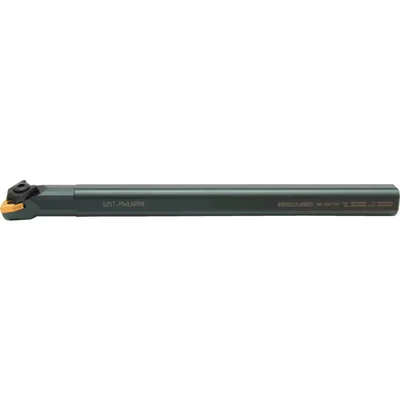

Indexa S25T MWLNR 08 Boring Bar
Description
ManoMano
Indexa: S25T MWLNR 08 Boing Ba 95 approach for 80 negative trigon inserts. MPN: IND1066770K EAN: 5036140081444 S25T MWLNR 08 Boing Ba Attributes: Approach Angle: 95° Centre to Cutting Tip: 17mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 11.5mm ISO Designation: S25T MWLNR 08 Insert Cutting Edge Length: 8.7mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.7mm Insert Shape: Trigon Insert Size: 0804 Insert Style: WN_G WN_A Inserts Included: None MFR Part No.: S25T-MWLNR08 Minimum Bore Diameter (D): 31mm Neck Length (l2): 40mm Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 23mm Shank Material: Steel Toolholder Style: MWLN
Description
(2)
Indexa: S25T MWLNR 08 Boing Ba 95 approach for 80 negative trigon inserts. MPN: IND1066770K EAN: 5036140081444 S25T MWLNR 08 Boing Ba Attributes: Approach Angle: 95° Centre to Cutting Tip: 17mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 11.5mm ISO Designation: S25T MWLNR 08 Insert Cutting Edge Length: 8.7mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 12.7mm Insert Shape: Trigon Insert Size: 0804 Insert Style: WN_G WN_A Inserts Included: None MFR Part No.: S25T-MWLNR08 Minimum Bore Diameter (D): 31mm Neck Length (l2): 40mm Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 23mm Shank Material: Steel Toolholder Style: MWLN
Zoro Tools95 approach for 80 negative trigon inserts.
