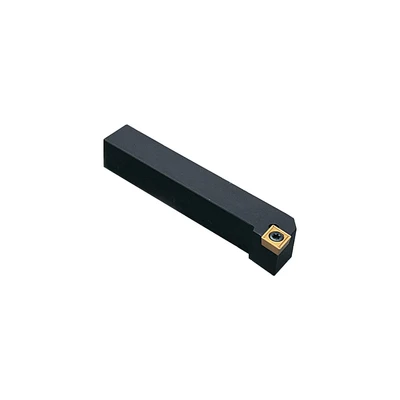

Indexa SCLCL 1616H09 External Toolholder
Description
ManoMano
Indexa: SCLCL 1616H09 External Toolholder 95 approach for 7 positive 80 rhombic inserts. MPN: SCLCL1616H09 EAN: 5036140080911 SCLCL 1616H09 External Toolholder Attributes: Approach Angle: 95° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16mm Head Length (l2): 16mm ISO Designation: SCLCR 2020K09 Insert Cutting Edge Length: 9mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3 Insert Style: CC_T Inserts Included: None MFR Part No.: SCLCL1616H09 Neck Length: 16mm Overall Length (l1): 100mm Set Type: Individual Toolholder Shank Height (h): 16mm Shank Material: Steel Shank Style: Offset Shank Width (b): 16mm Side to Cutting Tip (f): 20mm Toolholder Style: SCLC
Description
(2)
Indexa: SCLCL 1616H09 External Toolholder 95 approach for 7 positive 80 rhombic inserts. MPN: SCLCL1616H09 EAN: 5036140080911 SCLCL 1616H09 External Toolholder Attributes: Approach Angle: 95° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16mm Head Length (l2): 16mm ISO Designation: SCLCR 2020K09 Insert Cutting Edge Length: 9mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 80° Rhombic Insert Size: 09T3 Insert Style: CC_T Inserts Included: None MFR Part No.: SCLCL1616H09 Neck Length: 16mm Overall Length (l1): 100mm Set Type: Individual Toolholder Shank Height (h): 16mm Shank Material: Steel Shank Style: Offset Shank Width (b): 16mm Side to Cutting Tip (f): 20mm Toolholder Style: SCLC
Zoro Tools95 approach for 7 positive 80 rhombic inserts.
