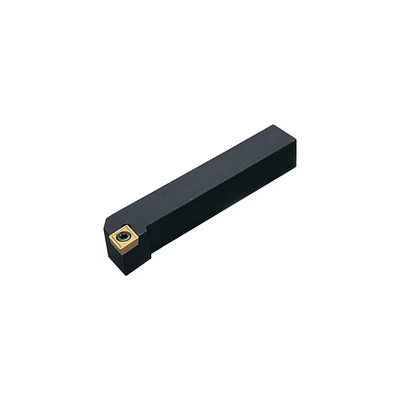

Indexa SCLCR 1010E06 External Toolholder
Description
ManoMano
Indexa: SCLCR 1010E06 Extenal Toolholde 95 approach for 7 positive 80 rhombic inserts. MPN: SCLCR1010000000 EAN: 5036140080874 SCLCR 1010E06 Extenal Toolholde Attributes: Approach Angle: 95° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 10mm Head Length (l2): 10mm ISO Designation: SCLCL 1010E06 Insert Cutting Edge Length: 6mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 80° Rhombic Insert Size: 602 Insert Style: CC_T Inserts Included: None MFR Part No.: SCLCR1010E06 Neck Length: 10mm Overall Length (l1): 70mm Set Type: Individual Toolholder Shank Height (h): 10mm Shank Material: Steel Shank Style: Offset Shank Width (b): 10mm Side to Cutting Tip (f): 12mm Toolholder Style: SCLC
Description
(2)
Indexa: SCLCR 1010E06 Extenal Toolholde 95 approach for 7 positive 80 rhombic inserts. MPN: SCLCR1010000000 EAN: 5036140080874 SCLCR 1010E06 Extenal Toolholde Attributes: Approach Angle: 95° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 10mm Head Length (l2): 10mm ISO Designation: SCLCL 1010E06 Insert Cutting Edge Length: 6mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 80° Rhombic Insert Size: 602 Insert Style: CC_T Inserts Included: None MFR Part No.: SCLCR1010E06 Neck Length: 10mm Overall Length (l1): 70mm Set Type: Individual Toolholder Shank Height (h): 10mm Shank Material: Steel Shank Style: Offset Shank Width (b): 10mm Side to Cutting Tip (f): 12mm Toolholder Style: SCLC
Zoro Tools95 approach for 7 positive 80 rhombic inserts.
Product specifications
