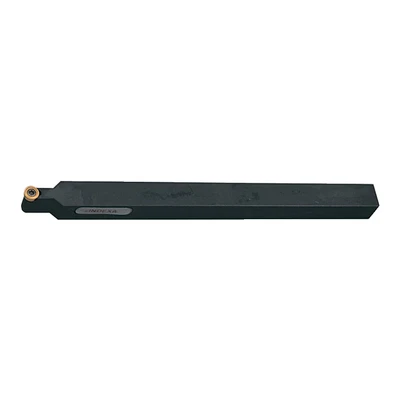

Indexa SRDCN 2525M06 External Toolholder
Description
ManoMano
Indexa: SRDCN 2525M06 Extenal Toolholde 90 approach for positive round inserts. MPN: SRDCN2525M06 EAN: 5036140081130 SRDCN 2525M06 Extenal Toolholde Attributes: Approach Angle: 90° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 25mm Head Length (l2): 25mm ISO Designation: SRDCN 2525M08 Insert Cutting Edge Length: 8mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6mm Insert Shape: Round Insert Size: 0602MO Insert Style: RC_M RC_T Inserts Included: None MFR Part No.: 106-497 Neck Length: 25mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Straight Shank Width (b): 25mm Side to Cutting Tip (f): 15.5mm Toolholder Style: SRDC
Description
(2)
Indexa: SRDCN 2525M06 Extenal Toolholde 90 approach for positive round inserts. MPN: SRDCN2525M06 EAN: 5036140081130 SRDCN 2525M06 Extenal Toolholde Attributes: Approach Angle: 90° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 25mm Head Length (l2): 25mm ISO Designation: SRDCN 2525M08 Insert Cutting Edge Length: 8mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6mm Insert Shape: Round Insert Size: 0602MO Insert Style: RC_M RC_T Inserts Included: None MFR Part No.: 106-497 Neck Length: 25mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Straight Shank Width (b): 25mm Side to Cutting Tip (f): 15.5mm Toolholder Style: SRDC
Zoro Tools90 approach for positive round inserts.
