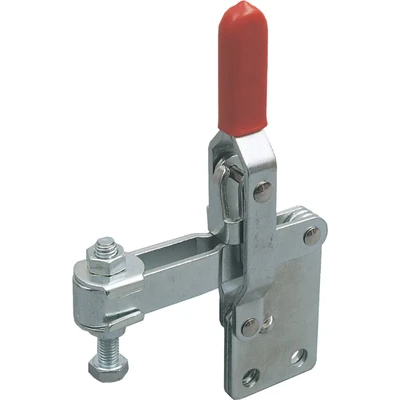

Indexa V90SA 'U' Bar Adjustable Vertical Clamp

ManoMano

Indexa: V90SA 'U' Bar Adjustable Vertical Clamp U Bar (Adjustable) Type Designed to improve performance in fabrication and engineering clamping applications. The rapid clamping/unclamping made possible by the use of toggle clamps can greatly reduce machine/operator down-time during all stages of production. Clamping Capacity - the forces stated are the maximum loads that can be applied without causing permanent deformation. Due to leverage ratios, the holding capacity will be greatest at the point on the bar nearest to the handle of the clamp and forces stated have been achieved at this point. MPN: GH-12055-U EAN: 5036140086630 V90SA 'U' Bar Adjustable Vertical Clamp Attributes: Bar Movement: 100° Clamp Type: Straight Handle Movement: 60° Nominal Holding Force: 90kgf Supplied With: Spindle (1/4") and Flanged Washer Type: Vertical Clamp Weight: 170g

Zoro Tools

U Bar (Adjustable) Type Designed to improve performance in fabrication and engineering clamping applications. The rapid clamping/unclamping made possible by the use of toggle clamps can greatly reduce machine/operator down-time during all stages of production. Clamping Capacity - the forces stated are the maximum loads that can be applied without causing permanent deformation. Due to leverage ratios, the holding capacity will be greatest at the point on the bar nearest to the handle of the clamp and forces stated have been achieved at this point.
