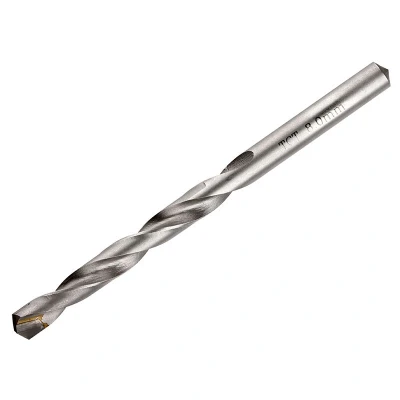

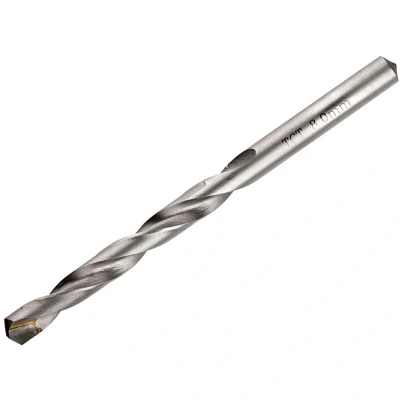

Irwin HSS TCT Tip Drill Bit 9.5mm OL125mm WL81mm IRW10502685

General description The Irwin HSS TCT Tip Drill Bit is designed for precise drilling in hardened materials such as steel, cast iron, bronze alloys, and manganese steel. It features a tungsten carbide tip for durability and efficiency, capable of drilling materials up to 50 Rockwell C hardness. The drill bit body is made from hardened chrome vanadium steel with a hardness of 56 Rockwell C, making it ideal for various drilling applications requiring accuracy and durability. Technical specifications Type: TCT (Tungsten Carbide Tipped) drill bit Diameter: 9.5mm Overall length: 125mm Working length: 81mm Material: Chrome vanadium steel with tungsten carbide tip Hardness: Drill body 56 HRC, tip up to 50 HRC Compatibility and accessories Compatible with stationary drill presses and drilling machines Requires coolant, such as a 3-6% emulsion, to prolong tool life Installation Insert the drill bit into the drill chuck, ensuring it is securely tightened Use appropriate speed and feed rates for

The Irwin Metric TCT (Tungsten Carbide Tipped) Drill Bits offer precision drilling with stationary machines in hardened steel cast iron bronze alloys and manganese alloyed steel. The C2 Carbide Tip will drill hardened material up to a hardness of 50 Rockwell C and is four facetted ground for low drilling pressure and perfect centring. The body of the drill bit is made from Chrome Vanadium Steel hardened to 56 Rockwell C. A coolant should always be used when drilling with TCT twist drill bits. Irwin suggest the use of a 3- 6% emulsion. The coolant will extend the lifetime of the drill bit.Irwin HSS TCT tip drill bit. Specifications:Diameter: 9.5mm.Total length: 125mm.Working Length: 81mm.PTDIRW10502685
