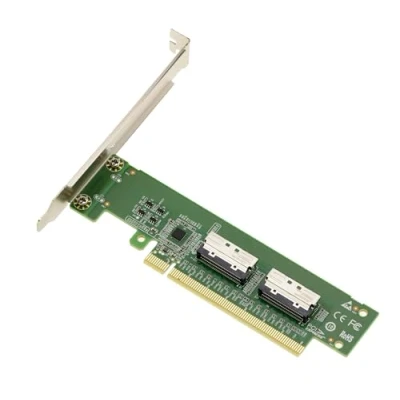

KALEA INFORMATIQUE MCIO 8i PCIe 5.0 to 2 Port Adapter Controller Card for NVMe M2 M3 U2 U3 SSD or Plates

Low dielectric loss high performance interface conversion board. For NVMe SSD or PCIe connectors via two MCIO 8i 74-pin connectors. Supports up to 4 PCIe or NVMe SSD devices. The adapter does not require a driver for operation or communication with connected NVMe drives. Disks are presented natively to the host and use native NVMe drivers. Compatible with Windows, Mac, Linux, DOS.... PCIe 5.0 x16 type card. Compatible with PCIe Gen5, Gen4, Gen3, Gen2, Gen1. The bandwidth of the card is the bandwidth that the PCIe slot on the motherboard can support. Two MCIO connectors (74 Pin, x8 PCIe Gen 5). Supports up to 4 PCIe or NVMe SSD devices if support via motherboard from bifurcation (x16) to 2x (x8) or 4x (x4) mode. Support for a single NVMe or PCIe device when bifurcation mode is not supported. Direct connection to U2 or U3 NVMe SSD via MCIO 8i cable to SFF-8639. Operating temperature 5 to 50 °C. Dimensions 146.5 mm x 39.4 mm, weight 70.5 g. Card supplied with high and low profile brackets.
