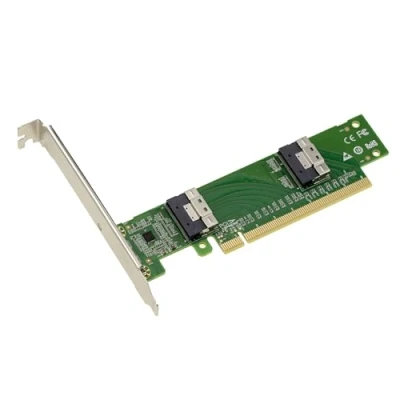

KALEA INFORMATIQUE PCIe 4.0 to 2 Port Slim SAS SFF 8654 8i Controller Card Adapter for NVMe M2 M3 U2 U3 SSD or Insert Plates

Low dielectric loss high performance interface conversion board. For NVMe SSD or PCIe connectors via two 74-pin SlimSAS (SFF-8654) connectors. Supports up to 4 PCIe or NVMe SSD devices. The adapter does not require a driver for operation or communication with connected NVMe drives. Disks are presented natively to the host and use native NVMe drivers. Compatible with Windows, Mac, Linux, DOS.... PCIe 4.0 x16 type card. Compatible with PCIe Gen4, Gen3, Gen2, Gen1. The bandwidth of the card is the bandwidth that the PCIe slot on the motherboard can support. Two SlimSAS SFF-8654 connectors (74 Pin, x8 PCIe Gen 4). Supports up to 4 PCIe or NVMe SSD devices if support via motherboard from bifurcation (x16) to 2x (x8) or 4x (x4) mode. Support for a single NVMe or PCIe device when bifurcation mode is not supported. Direct connection to U2 or U3 NVMe SSD via SlimSAS 8654 (8i) cable to SFF-8639. Operating temperature 5 to 50 °C. Dimensions 146.5 mm x 39.4 mm, weight 75 g.
