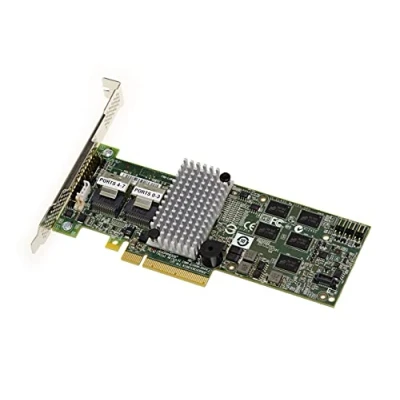

KALEA INFORMATIQUE PCIe 3.0 SAS 6GB 8 Ports controller card. Model LSI 9260 8i with Raid 0 1 5 6 10 50 60 and 512MB DDRII cache

LSI card delivered in "OEM" version, i.e. delivered in a neutral box and with drivers to be downloaded from the LSI website (www.broadcom.com). Key features: 8 internal 6Gb/s SATA+SAS ports, via Mini-SAS SFF-8087 (horizontal mounting), LSI SAS 2108 6Gb/s RAID-on-Chip 800MHzPowerPC processor, 512MB 800MHz DDRII cache memory, Optional battery, RAID 0, 1, 5 and 6 / RAID Spans 10, 50 and 60. Features: Eight internal SATA+SAS 6 Gbps ports, Two internal mini-SAS connectors (SFF8087), PCIe 2.0 x8, LSI SAS 2108 RAID on Chip (ROC), Transfer rate 6GB/s per port, SAS Half Duplex bandwidth 600MB/s per lane, 512MB 800MHz DDRII cache memory, Operating voltage 3.3V +/-9%, Support for up to 128 devices in non-RAID mode, Optional battery LSIiBBU07 RAID: RAID 0, 1, 5, and 6, RAID spans 10, 50 and 60, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Auto resume, Single controller Multipathing, Load Balancing, Configurable bands up to 1MB, Fast initialisation, SSD Guard compatible, S.M.A.R.T compatible, Support for up to 64 logical disks. COD. Hot Spare support, SES and SGPIO compatible. Microsoft Windows 11/10/8/7/Vista/2008/Server 2003, Linux , Solaris (x86), FreeBSD , VMware and more. Card supplied with Low and High Profile brackets.
