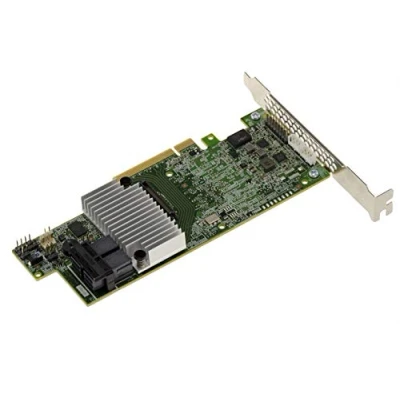

KALEA INFORMATIQUE PCIe 3.0 SAS 12GB 8 Internal Ports Controller Card with 1GB DDR3 Cache and Raid 0 1 5 6 10 50 60. Model LSI 9361 8i

OEM" version card, i.e. delivered in a neutral box and with drivers to be downloaded from the LSI website (www.broadcom.com). It can be used to add 8 internal SAS ports to a PC or server via a PCIe 3.0 (or higher) 8x (or 16x) connector. SAS3108 12 Gb/s dual-core ROC controller. 8 internal ports via 2 Mini SAS HD SFF8643 connectors, each supporting 4 drives. Data transfer rate 12Gb/s SAS 3.0 compatible. 1 GB 1866 MHz DDR3 SDRAM cache memory. SAS Half Duplex bandwidth, x8 bus, 12MB per port. PCIe 3.0 bus, x8. Form factor: Low Profile, supplied with Low and High Profile brackets. Support for Passive Copper and Active Optical connectors (external port only). Operating voltage +12V +/-8%; 3.3V +/-9%. Power consumption 13W. Environment: operating 0°C to 55°C, storage -45°C to 105°C, RH 5 to 90%. Service life in excess of 1,343,187 hours. RAID features: RAID 0, 1, 5, and 6 / RAID spans 10, 50, and 60, OCE, RLM, Auto Resume, Load Balancing, Configurable bands (max 1MB), Fast initialisation, SSD support, support for up to 64 logical disks, COD, SMART, Hot Spare, SES and SGPIO support, Databolt bandwidth optimizer technology, Shielded state drive diagnostic technology.
