KALEA INFORMATIQUE PCIe Gen 3.0 x16 Riser to 4 Port x4 Bifurcation Adapter 90 Orientation

Name: KALEA INFORMATIQUE PCIe Gen 3.0 x16 Riser to 4 Port x4 Bifurcation Adapter 90 Orientation
Brand: KALEA-INFORMATIQUE
SKU: 0727ed51a8bf4972f0a60e8d65c177e4

1/1

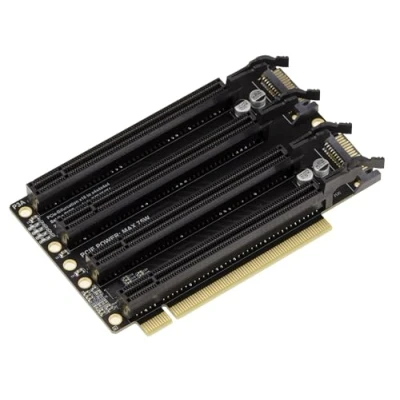

Image of KALEA INFORMATIQUE PCIe Gen 3.0 x16 Riser to 4 Port x4 Bifurcation Adapter 90 Orientation

Amazon

Prices from

44.35

Description

Amazon To place one to four PCIe cards horizontally. Female ports are physically the size of x16 ports, but their bandwidth is x4 PCIe Gen 3.0 type riser, for use on a Gen 3.0 port. PCIe Gen 3.0 x16 throughput of 16GB/s. If support x16 to x4/x4/x4/x4/x4 bifurcation mode: allows you to connect four PCIe x4 cards horizontally. If not support bifurcation mode: allows you to connect a PCIe x16 card horizontally. Power recovery by two 15-point SATA connectors, maximum power supported 75W. Riser height excluding PCIe male connector: 72 mm. Total height: 80 mm. Female slot spacing: 20mm (center of slot to centre of slot at top) Total length: 125 mm.

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 44.35

Description (1)

To place one to four PCIe cards horizontally. Female ports are physically the size of x16 ports, but their bandwidth is x4 PCIe Gen 3.0 type riser, for use on a Gen 3.0 port. PCIe Gen 3.0 x16 throughput of 16GB/s. If support x16 to x4/x4/x4/x4/x4 bifurcation mode: allows you to connect four PCIe x4 cards horizontally. If not support bifurcation mode: allows you to connect a PCIe x16 card horizontally. Power recovery by two 15-point SATA connectors, maximum power supported 75W. Riser height excluding PCIe male connector: 72 mm. Total height: 80 mm. Female slot spacing: 20mm (center of slot to centre of slot at top) Total length: 125 mm.
