KALEA INFORMATIQUE PCIe Gen 4.0 x16 to 2 Port x8 Bifurcation Riser Adapter 90 Orientation 32GB/s Gen4

Name: KALEA INFORMATIQUE PCIe Gen 4.0 x16 to 2 Port x8 Bifurcation Riser Adapter 90 Orientation 32GB/s Gen4
Brand: KALEA-INFORMATIQUE
SKU: b48f9eddef975f537788b62c61d43bdf

1/1

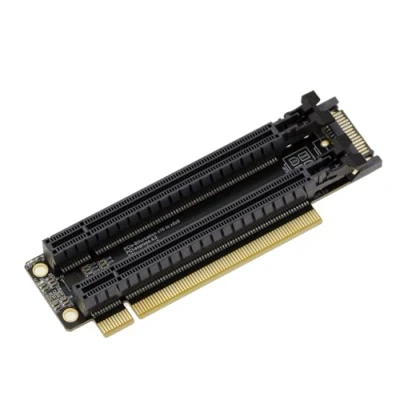

Image of KALEA INFORMATIQUE PCIe Gen 4.0 x16 to 2 Port x8 Bifurcation Riser Adapter 90 Orientation 32GB/s Gen4

Amazon

Prices from

57.74

Featured

	£ 57.74	To Shop
	£ 57.74	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon To place one card or two PCIe cards horizontally. Female ports are physically the size of x16 ports, but their bandwidth is x8 PCIe Gen 4.0 type riser, for use on a Gen 3.0 or Gen 4.0 port. PCIe Gen 4.0 x16 throughput of 32GB/s. If support x16 to x8/x8 bifurcation mode: allows you to connect two PCIe x8 cards horizontally. If not support bifurcation mode: allows you to connect a PCIe x16 card horizontally. 15-point SATA connector power recovery. Riser height (excluding PCIe male connector): 30mm Female PCIe Connectors Width: 5mm Spacing between the two female slots: 20 mm. Total length: 125 mm.

Compare webshops (2)

Shop

Price

£ 57.74

To Shop

£ 57.74

To Shop

Description (1)

To place one card or two PCIe cards horizontally. Female ports are physically the size of x16 ports, but their bandwidth is x8 PCIe Gen 4.0 type riser, for use on a Gen 3.0 or Gen 4.0 port. PCIe Gen 4.0 x16 throughput of 32GB/s. If support x16 to x8/x8 bifurcation mode: allows you to connect two PCIe x8 cards horizontally. If not support bifurcation mode: allows you to connect a PCIe x16 card horizontally. 15-point SATA connector power recovery. Riser height (excluding PCIe male connector): 30mm Female PCIe Connectors Width: 5mm Spacing between the two female slots: 20 mm. Total length: 125 mm.
