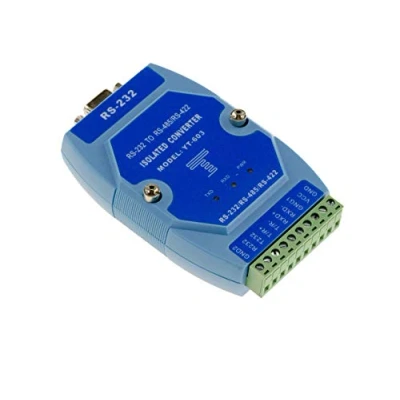

KALEA INFORMATIQUE RS232 to RS422 RS485 Converter with Photoelectric Isolation. Data RS 232 422 485

RS232 to RS422/485 converter with photoelectric insulation. Converts RS232 signal to RS422 or RS485 signal Plug and play, no settings required. Compatible with RS-232, RS-485 and RS-422. Conforms to EIA/TIA standards. Electrical Interface: DB9 Female to RS232 Input and 10 Pin Connector to RS422/485 Output Protection against overvoltage up to 600 W, ESD protection +/- 15 kV. Insulation degree: 2500 Vrms 500 DC non-stop. Supported modes: asychronous full duplex and asychrone half duplex 3 activity diodes: power supply (PWR), shipping (TXD), reception (RXD). Transmission via cable twisted pair. Possibility of moonage "Point to Point" or "Point to Multipoint". Transmission speed 15.2 kbps (up to 300 m), 3.8 kbps (up to 2.4 km), 9600 bps (up to 5 km). Measures 113mm x 55mm x 25mm with base for fixing. Signals: RS232 Input: GND / RXD / TXD / DTR / GND / DSR / RTS / CTS / RI Output RS422: SEND A+ / SEND B / RECEIVE A+ / RECEIVE B / Power 10V-48VDC Output RS485 A+ / RS-485 B / Power 10V-48VDC
