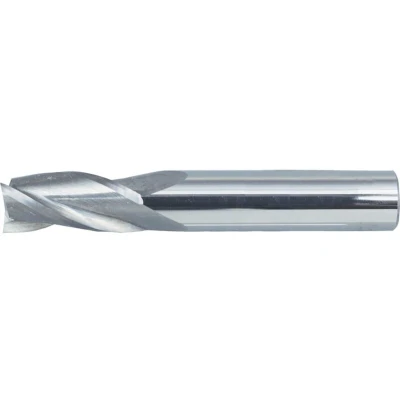

Kennedy 1/8" 3FL Standard Carbide Slot Drill

ManoMano

Kennedy: 1/8" 3FL Standard Carbide Slot Drill 3 Flute: Regular Series - Inch Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards. Inch Tolerances Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002. Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003. MPN: E524300801 EAN: 5036140286412 1/8" 3FL Standard Carbide Slot Drill Attributes: Cutter Diameter: 1/8in Cutter Diameter Tolerance: h10 Cutting Direction: Right Hand End Mill Type: Slot Drill Finish/Coating: Uncoated Flute Length: 3/8in Flute Type: Helical Helix Angle: 30° Length Type: Regular Material: Carbide Carbide Number of Flutes: 3 Overall Length: 1-1/2in Plunge Type: Centre Cutting Shank Diameter: 1/8in Shank Diameter Tolerance: h6 Shank Type: Plain Round

Zoro Tools

3 Flute: Regular Series - Inch Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards. Inch Tolerances Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002. Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
