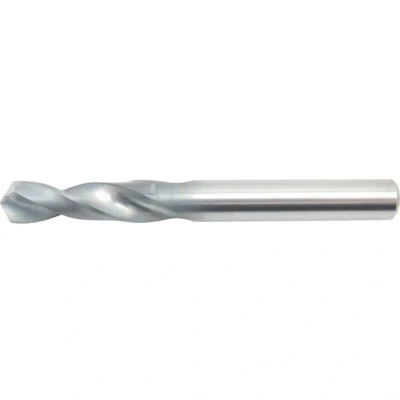

Kennedy 3.7MM Carbide S/S Stub Drill

ManoMano

Kennedy: 3.7MM Carbide S/S Stub Drill Carbide Straight Shank Stub Drills Metric For drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous Materials and abrasive plastic. Point angle: 118, Helix angle: 30, tolerance of diameter: h7, tolerance of shank: h6. Manufactured toDIN 6539. Tolerances: Cutting Dia. + 0.000mm - 0.015mm. Shank Dia. + 0.000mm - 0.030mm. MPN: D5405037 EAN: 5036140096561 3.7MM Carbide S/S Stub Drill Attributes: Cutting Direction: Right Hand Drill Diameter: 3.7mm Drill Diameter Tolerance: h7 Finish/Coating: Bright Flute Length: 20mm Flute Type: Spiral Helix Angle: 30° Helix Type: Normal Helix Material: Carbide Number of Flutes: 2 Overall Length: 52mm Point Angle: 118° Standards Met: DIN 6539

Zoro Tools

Carbide Straight Shank Stub Drills Metric For drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous materials and abrasive plastic. Point angle: 118, helix angle: 30, tolerance of diameter: h7, tolerance of shank: h6. Manufactured toDIN 6539. Tolerances: Cutting Dia. + 0.000mm - 0.015mm. Shank Dia. + 0.000mm - 0.030mm.
