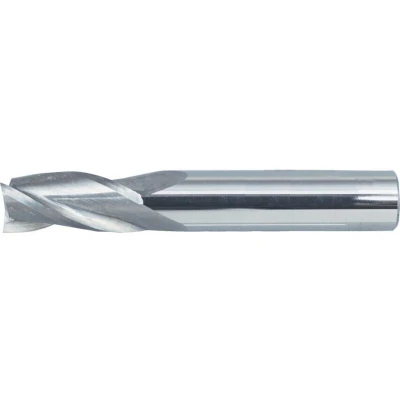

Kennedy 4.0MM 3FL Standard Carbide Slot Drill

ManoMano

Kennedy: 4.0MM 3FL Standard Carbide Slot Drill 3 Flute: Regular Series - Metric Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards. Metric Tolerances Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050. Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080. MPN: E5425040 EAN: 5036140097742 4.0MM 3FL Standard Carbide Slot Drill Attributes: Cutter Diameter: 4.0mm Cutter Diameter Tolerance: h10 Cutting Direction: Right Hand End Mill Type: Slot Drill Finish/Coating: Uncoated Flute Length: 14.0mm Flute Type: Helical Helix Angle: 30° Length Type: Regular Material: Carbide Carbide Number of Flutes: 3 Overall Length: 40.0mm Plunge Type: Centre Cutting Shank Diameter: 4.0mm Shank Diameter Tolerance: h6 Shank Type: Plain Round

Zoro Tools

3 Flute: Regular Series - Metric Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Works Standards. Metric Tolerances Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050. Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
