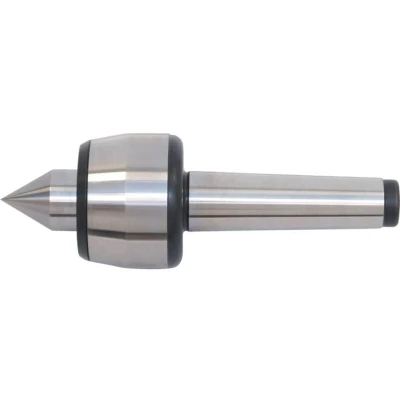

Kennedy Revolving Centre 5MT Standard Duty

ManoMano

Kennedy: Revolving Cente 5MT Standad Duty Manufactured from high alloy steel hardened and tempered then Precision ground externally. Precision bearings are fitted as standard and the centres have a 60 point. Mounting Tapers are accurate to DIN228 Form A, Tolerance Class AT5. Maximum runout: No.1 to 4 taper: 0.005mm. No.5 to 6 taper: 0.010mm. MPN: KEN4881050K EAN: 5036140062795 Revolving Cente 5MT Standad Duty Attributes: Axial Load @100: 570rpm Axial Load @3000: 230rpm Maximum RPM: 3000rpm Maximum Radial Load: 280rpm Morse Taper: 5 Radial Load @100: 800rpm Type: Revolving Centre Weight: 3kg

Zoro Tools

Manufactured from high alloy steel hardened and tempered then precision ground externally. Precision bearings are fitted as standard and the centres have a 60 point. Mounting Tapers are accurate to DIN228 Form A, Tolerance Class AT5. Maximum runout: No.1 to 4 taper: 0.005mm. No.5 to 6 taper: 0.010mm.
