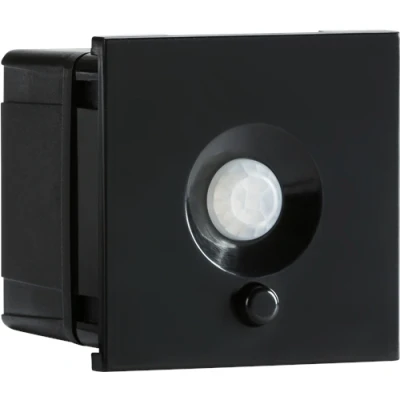

KnightsBridge 120 PIR Sensor Module w/override 50 x 50mm Black

Amazon

Euro Module Compatible: Designed for euro modular frames accepting a standard 50 × 50mm module and suitable for installation in a 47mm back box. PIR Motion Detection: Passive infrared operation with a 120° detection angle and up to a 5m sensing range for reliable automatic lighting control. Manual Override Control: Built-in override button allows easy switching between AUTO mode and permanent ON when required. Fixed Time & Lux Settings: Pre-set 3-minute time delay with fixed lux sensitivity for simple, maintenance-free operation. Mains Powered Performance: Rated at 220–240V 50Hz, supporting up to 100W LED or 200W incandescent loads, with live and neutral wiring required., Manufacturer: Knightsbridge

Electrical World

Suitable for use in euro modular frames that can take a 50 x 50mm module - Voltage: 220-240V 50Hz - Loading: Max. 100W LED and 200W Incandescent - Operation: Passive infrared - Time pre-set: 3 mins - Field of Detection: 120° - Range: 5m - Override button switches between AUTO mode and ON - Suitable for 47mm back box - Lux sensitive and Time operation fixed - Live and Neutral wiring required NB: Shown mounted in a SF2GMB (not included)Technical Specification:Recessed Depth (mm): 40Min. Mounting Box Depth (mm): 47mmConstruction: PolycarbonateFinish: BlackClass: IIIP Rating: IP20Primary Voltage: 230V 50HzDimensions: Height: 50mmWeight: 0.059KgWarranty: 1 Year
