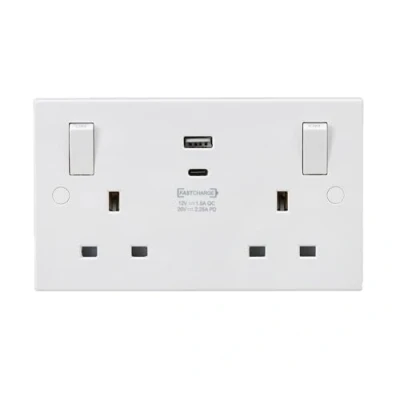

KnightsBridge 13A 2G Switched socket with outboard rockers and dual USB (A+C) QC18W / PD 45W

Introducing the White Double Socket with innovative charging capabilities designed for modern power needs. This high-performance socket features a powerful 45W Power Delivery (PD) USB-C port, ideal for charging power-hungry devices such as laptops directly from the wall outlet. No more bulky adapters are required; simply use a compatible PD USB-C cable to take advantage of the full 45W charging capability. In addition, the socket is equipped with an 18W Quick Charge (QC) USB-A port, allowing for simultaneous charging of an additional device.

Design and Flexibility

The White Double Socket is available in several stylish designs - including curved edge, square edge, and modular options - in an attractive palette of white, grey, and black. This versatility allows for a bespoke finish to complement your home or office decor. The sleek, hard-wearing square-edge 9mm plate not only looks contemporary but also offers anti-microbial properties, ensuring that your surfaces remain cleaner for longer.

Enhanced Features

This socket is certified to comply with UK standards, including UKCA, EMC, RoHS, and multiple BS EN standards, ensuring that it meets all safety requirements. With outboard rockers, top access to captive terminals speeds up installation and allows for a convenient setup process. It also includes twin earths for enhanced safety and connectivity.

Technical Specifications

The socket is constructed from durable thermoset resin and features an IP rating of IP20, making it suitable for indoor use. Here are the socket's key specifications:

- 13A rated

- Min. mounting box depth: 25-35mm (dependent on wiring conditions)

- Primary voltage: 230V 50Hz

- Earth terminal: Yes

- Dimensions: Height 86mm, Width 146mm, Projection 9mm

- Weight: 0.285kg

- Packed in individual Knightsbridge rip-top poly bags with euro slots

Installation and Use

For optimal performance, it is recommended to use certified USB cables to ensure safety and compatibility with various devices. Note that a 35mm deep pattress box is required for surface mounting this socket.

The Knightsbridge White Double Socket with dual USB charging capabilities offers a seamless blend of style, safety, and convenience, making it the perfect addition to any modern electrical system. Whether at home or in a professional setting, this socket meets the demands of today's technology-driven lifestyle.
