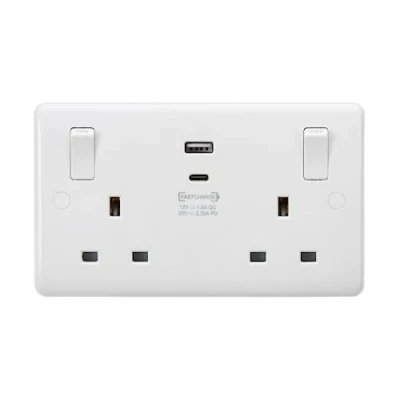

KnightsBridge 13A 2G Switched socket with outboard rockers and dual USB (A+C) QC18W / PD45W

Introducing the innovative White Double Socket featuring advanced charging capabilities, designed to meet the needs of contemporary users. This dual socket is equipped with a powerful 45W Power Delivery (PD) USB-C port and an 18W Quick Charge (QC) USB-A port, allowing you to charge your devices faster and more efficiently than ever before.

High <a class='cat-link' href='https://bigshopper.co.uk/brand/performance/'>Performance</a> and Design <a class='cat-link' href='https://bigshopper.co.uk/brand/options/'>Options</a>

The high-performance 45W socket boasts a gently contoured 7mm plate with rounded edges and anti-microbial properties, ensuring a sleek and hygienic finish. Available in various designs, including curved edge and square edge, as well as in modular options of white, grey, and black, this socket can be customized to blend seamlessly with your interior décor. The lightweight construction is complemented by a thermoset resin material, providing durability and longevity.

Flexible Charging Solutions

For the first time, users can charge power-hungry devices like laptops directly from wall outlets using the integrated 45W USB-C port—eliminating the need for bulky adapters. This feature not only enhances convenience but also caters to the increasing demands of modern technology. To utilize the maximum power output, certified PD-compatible USB-C cables are recommended, ensuring both compatibility and safety.

Installation and Compliance

Designed for easy installation, the socket features top access to captive terminals, speeding up the fitting process. It comes with outboard rockers that enhance usability and aesthetic appeal. Additionally, the socket is compliant with UK regulations, having received certification for UKCA, EMC, RoHS, REACH, BS 1363-2:2016+A1:2018, BS EN IEC 62368-1:2020+A11:2020, and BS EN IEC 62368-3:2020. The dual USB ports—Type-A QC 18W and Type-C PD 45W—make this an ideal choice for users looking to maximize efficiency and charging speed.

Technical Specifications

The socket is rated at 13A and features twin earths for safety. It requires a minimum mounting box depth of 25-35mm, depending on wiring conditions, with a recommendation for a 35mm deep pattress box if surface mounting. The product has an IP rating of IP20, making it suitable for indoor use.

Key specifications include:

- Height: 86mm

- Width: 146mm

- Weight: 0.285kg

- Primary Voltage: 230V 50Hz

- Warranty: 2 Years

This Knightsbridge 13A 2G Switched Socket is an excellent choice for those looking for a versatile, stylish, and high-performance electrical solution that caters to the demands of modern charging needs.
